Model and Photos by S. Dobson
Boxed Kit:- ?450.00; Etchings & pressings ?125.00
GWR 42xx / 52xx Class 2-8-0t
Updated October 2023
|
|
|
|
Model and Photos by S. Dobson |
Boxed Kit:- ?450.00; Etchings & pressings ?125.00 |
 |
 |
 |

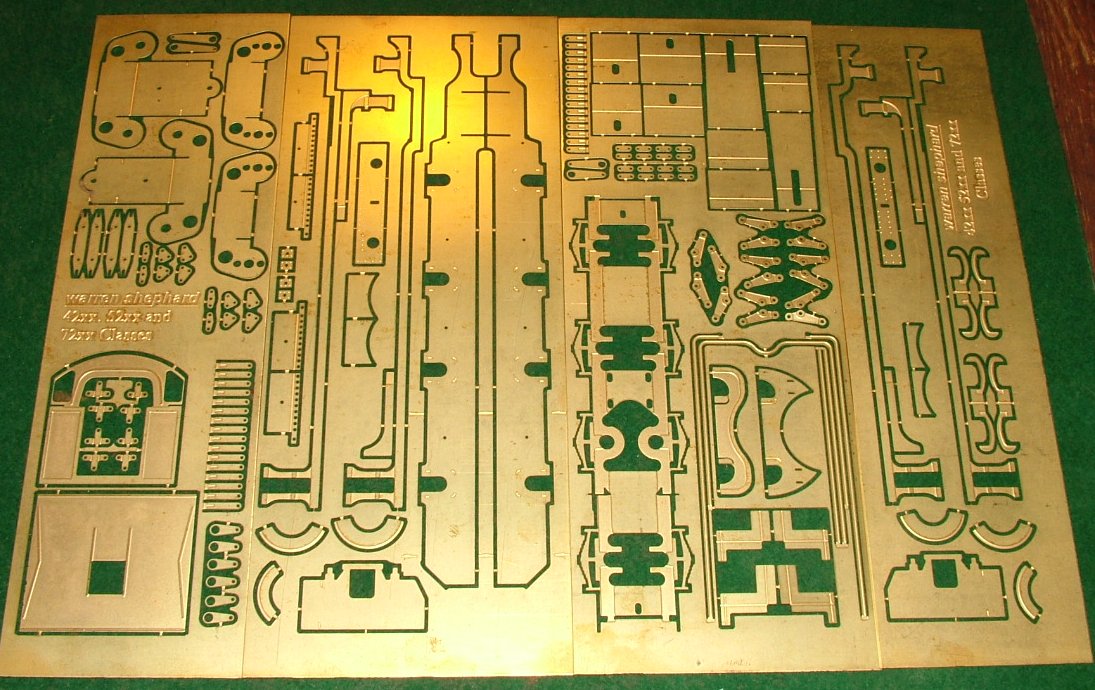

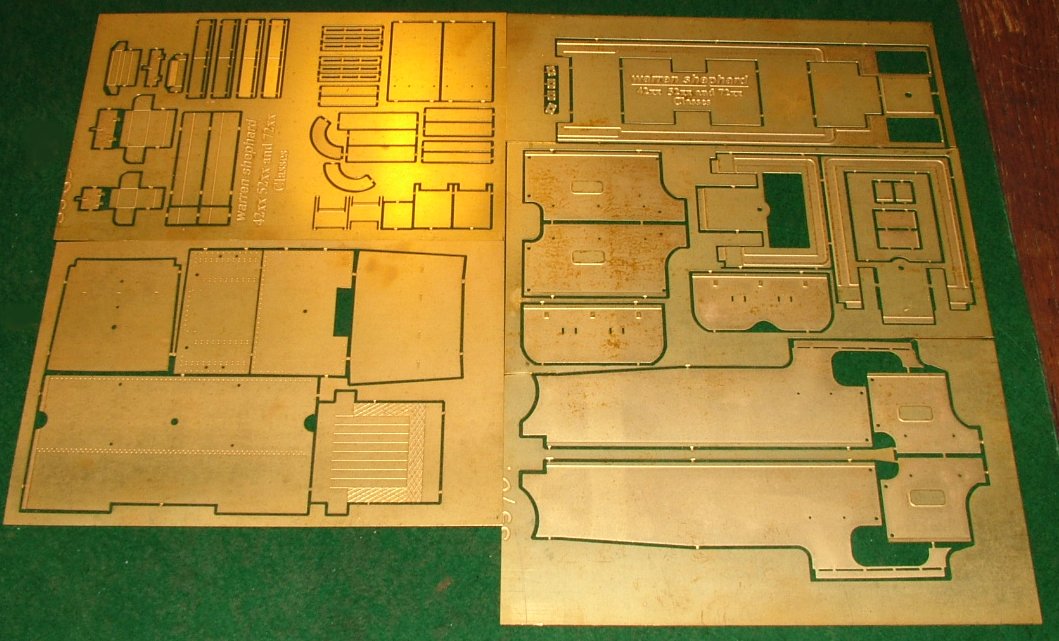

| Etching in kit | ||
Frames, running plate, tanks, cab, bunker, firebox, boiler, smokebox, brake gear,
smokebox door pressing and smokebox ring pressings. Handrail knobs and wire,
plus set of lost wax brass castings, and a white metal back head.
Martello Cross head/slide bar assemblies and screw couplings.
Premier Jointed coupling rods, Connecting rods. Set of step by step assembly drawings.
Wheels, motor, paint, Transfers and # plates not included in the kit

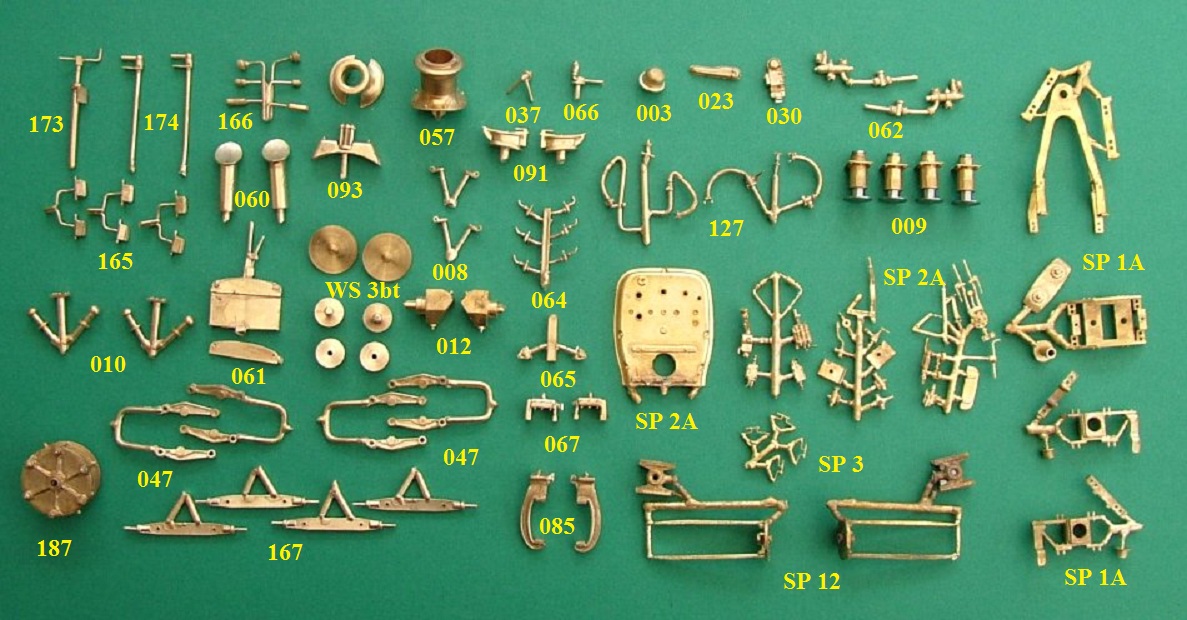

Etchings, Pressings and Castings :-
Castings available separately
|
|
|||
| SP1A Pony truck | ?25.00 | SP2A Backhead & fittings | ?25.00 |
| SP12 2 Cylinder slidebars & crossheads | ?25.00 | SP3 Boiler band clips | ?8.00 |
| WS3bt Cylinder & valve chest covers | ?9.00 | ||
| 004 Pony truck spring cover | ?3.50 | 067 Rocker arm bearing brackets | ?6.00 |
| 005 Tank fillers (screw type) not shown | ?7.50 | 085 Motion brackets | ?7.50 |
| 008 Tank lifting Bkts (set) | ?6.00 | 091 Tank fillers (snap type) | ?7.50 |
| 009 Collett parallel buffers (4) | ?15.00 | 093 Safety v/v & bonnet | ?12.50 |
| 010 Tank vents buff/beam plates | ?6.50 | 127 Vacuum & steam heating pipes not shown | ?10.00 |
| 012 Sand boxes (pair) | ?7.50 | 154 Smokebox door hinge | ?4.50 |
| 019 Water level indicator | ?3.50 | 165 Oil reservoirs | ?5.00 |
| 023 S/box oil pipe cover | ?3.50 | 166 Sandbox covers & Oil pots | ?5.00 |
| 030 AWS bell not shown | ?3.00 | 167 Brake stretchers | ?4.40 |
| 037 S/box door handle | ?3.00 | 173 Hand brake column | ?4.50 |
| 047 Brake hangers & stretchers | ?14.00 | 174 Injector water valves | ?5.00 |
| 055 Collett taper buffers not shown | ?15.00 | ||
| 056 Dean taper buffers | ?15.00 | Slaters Plastikard:- wheels | ?132.82 |
| 057 Chimney | ?8.50 |
2 Rail Fine Scale |
|
| 060 Steam pipes (pair) | ?5.00 | Premier Components:- | |
| 061 Lever reverser | ?10.00 | Coupling and connecting rods | ?42.00 |
| SP Injectors | ?8.00 | ||
| 064 Cylinder drain cocks | ?5.00 | Walsall Model Industries:- wheels | |
| 065 Snifting valves | ?5.00 |
2 Rail Fine Scale |
|
