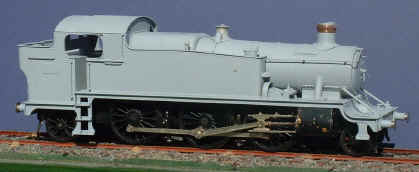

GWR 51xx Class 2-6-2t
Updated October 2023
|
|
|
|
Boxed Kit:- ?450.00 |

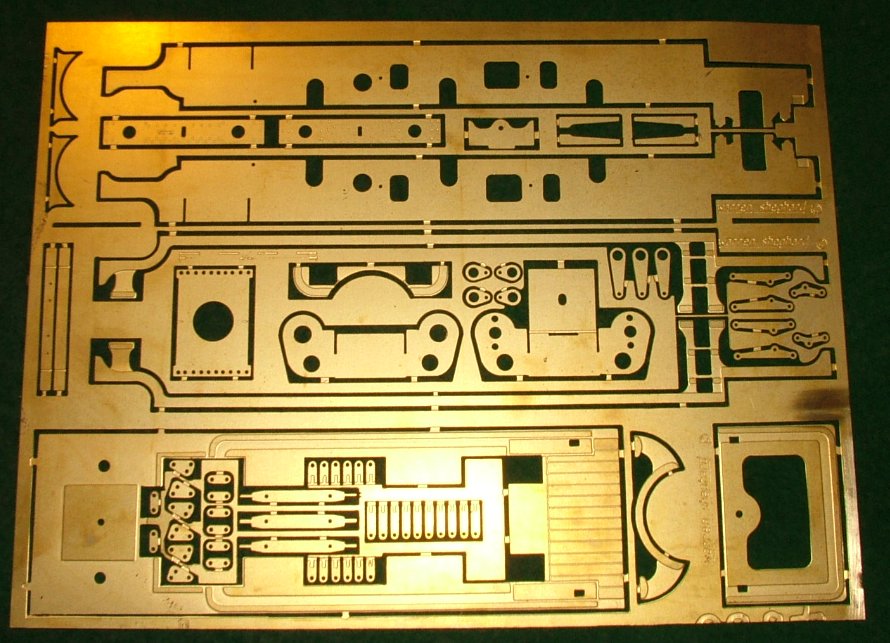

Full set Loco etchings & pressings ?160.00 |
|
Frames, running plate, tanks, cab, bunker, firebox, boiler, smokebox, brake gear, smokebox door pressing and smokebox ring pressings. Handrail knobs and wire, plus set of lost wax brass castings, and a white metal back head. Jointed coupling rods, Connecting rods and screw couplings. Set of step by step assembly drawings. Wheels, motor, paint, Transfers and # plates not included in the kit |
|
 |
 |
 |

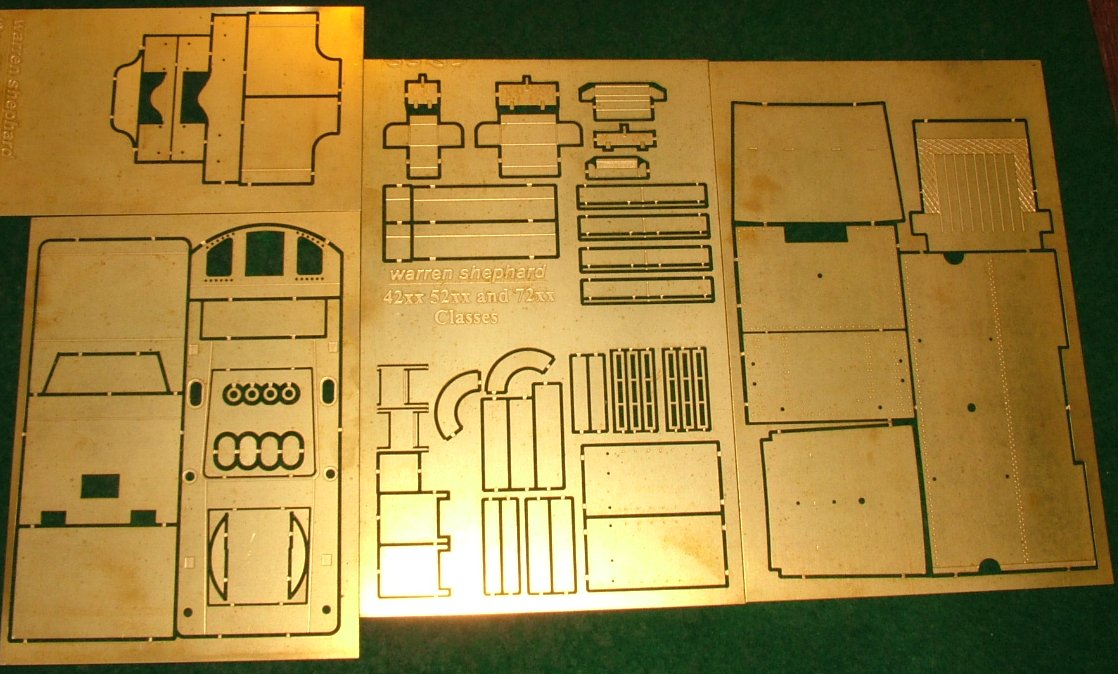

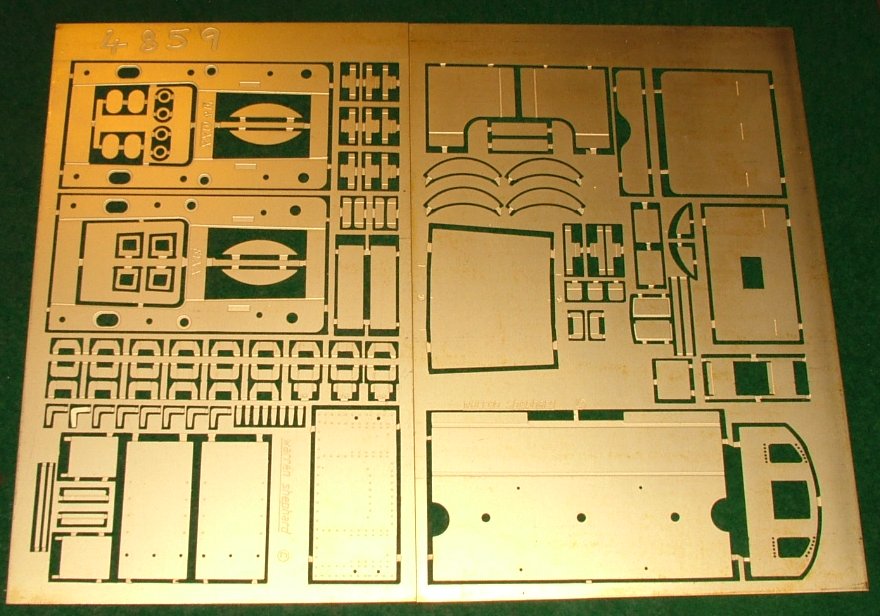

| Etchings in Kit | ||

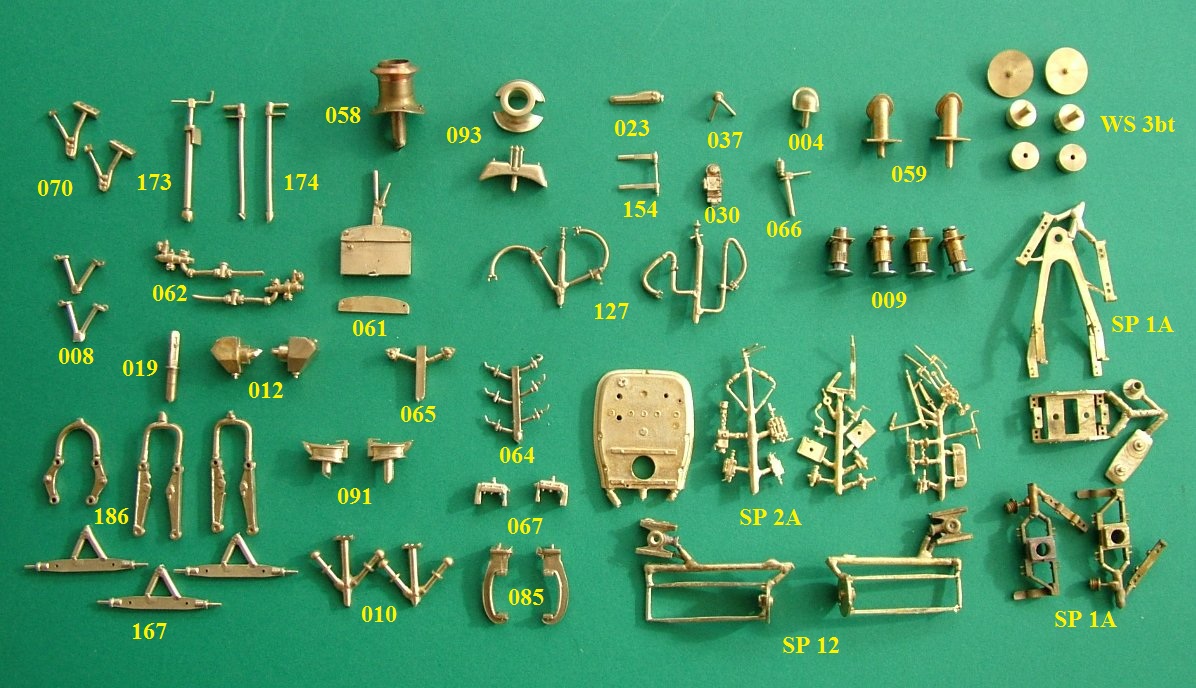

Castings available separately
|
|
|||
| SP1A Pony truck | ?15.00 | SP2A Backhead & fittings | ?25.00 |
| SP12 2 Cylinder slidebars & Crossheads | ?25.00 | SP3 Boiler band clips [Sprue of 4 Not shown] | ?4.00 |
| WS3bt Cylinder & valve chest covers | ?10.00 | ||
| 004 Pony truck spring cover | ?2.10 | 062 Injectors | ?5.00 |
| 005 Tank fillers (Screw lid) not shown | ?5.60 | 064 Cylinder drain cocks | ?4.00 |
| 008 Tank lifting brackets | ?3.10 | 065 Snifting valves | ?4.00 |
| 009 Collett parallel buffers (4 off) | ?12.00 | 067 Rocker arm bearing brackets | ?5.00 |
| 010 Tank vents, buff/beam plates (2 off) | ?3.10 | 070 Front drop plate steps | ?3.75 |
| 012 Sand boxes (oval lid; pair) | ?5.60 | 085 Motion brackets | ?6.25 |
| 019 Water level indicator | ?3.00 | 091 Tank fillers | ?5.60 |
| 023 S/box oil pipe cover | ?2.10 | 093 Topfeed cover/safety valve & bonnet | ?12.50 |
| 030 AWS bell | ?2.00 | 127 Vacuum & steam heating pipes | ?8.75 |
| 037 S/box door handle | ?3.00 | 154 Smokebox door hinge | ?4.40 |
| 055 Collett tapered buffers not shown | ?1300 | 165 Oil reservoirs | ?4.40 |
| 056 Dean tapered buffers not shown | ?13.00 | 166 Sandbox lids & Oil pots | ?4.40 |
| 058 Chimney (copper capped) | ?8.50 | 167 Brake stretchers [x3] | ?3.30 |
| 059 Outside steam pipes | ?3.50 | 173 Hand brake column | ?4.00 |
| 061 Reversing lever | ?4.40 | 174 Injector water valves | ?4.40 |
| 186 Brake hangers [set] | ?10.50 | ||
| Premier Components:- | |||
| Jointed coupling and connecting rods | ?35.00 | Walsall Model Industries:- wheels | |
| 2 Rail Fine Scale set | |||
| Slaters Plastikard:- wheels | |||
| 2 Rail Fine Scale set | ?124.88 | ||
|
Prices may vary, please check when ordering |
|||
Sans Pareil and Martello for more GWR castings
