GWR 45xx Class 2-6-2t

Updated 2nd January 2014



Boxed Kit:-  260.00





Frames, running plate, tanks, cab, bunker, firebox, boiler, smokebox, brake gear,

smokebox door pressing and smokebox ring pressings.  Handrail knobs and wire,

plus set of lost wax brass castings, and a L/W brass back head.

Premier Components jointed coupling rods  &, Connecting rods.

Set of step by step assembly drawings.

Wheels, motor, paint, screw couplings, Transfers and # plates not included in the kit

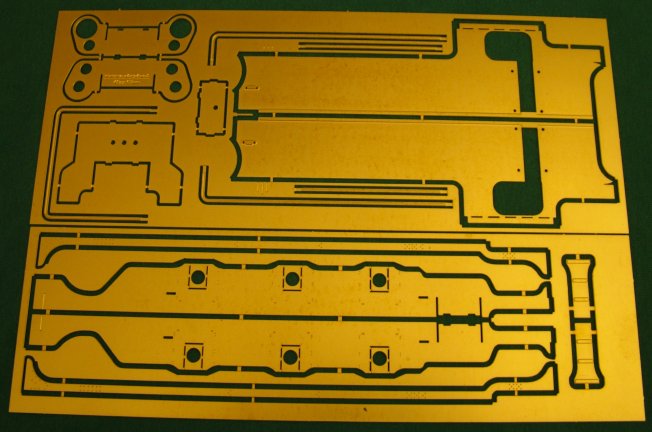

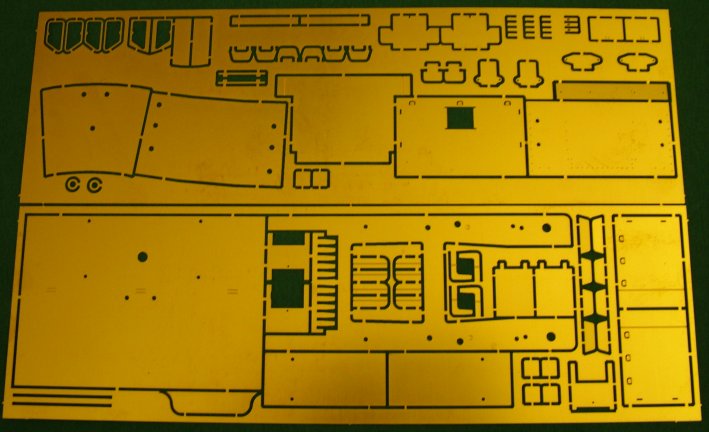

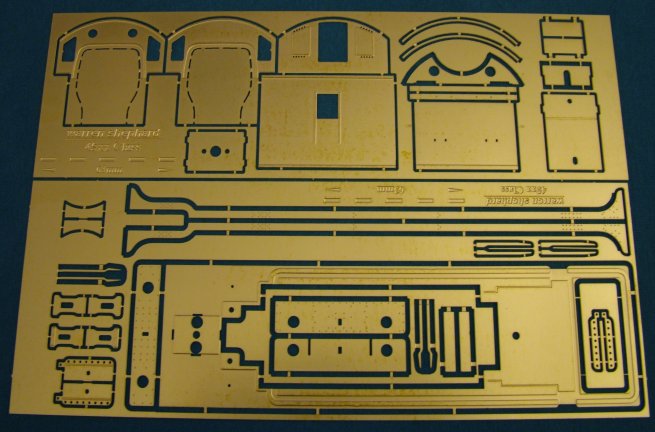

Etchings & castings in the Kit

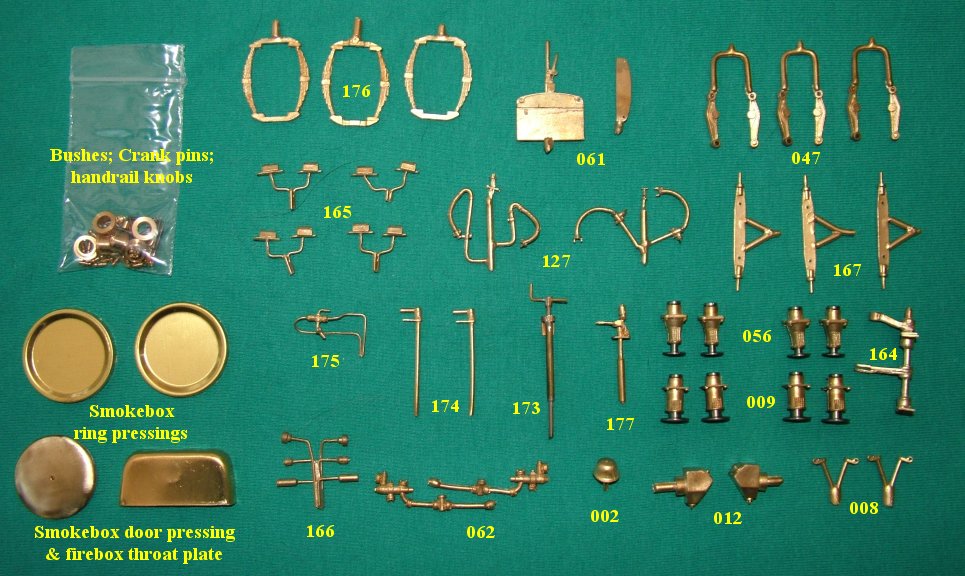

     Castings available separately

002 Pony truck spring cover 2.00

     Martello

008 Tank lifting Bkts (set) 3.10 M399 Top feed pipe casing 5.00
010 Tank vents, buff/beam plates (2 off) 3.10 M413 Snifting valves (pair) 6.75
012 Sand boxes (oval lid; pair) 5.60 M421 Cylinder drain cocks (set) 4.25
019 Water level indicator 3.00
022 AWS bell  (not shown) 2.50
023 S/box oil pipe cover 2.10 Sans Pareil Tank fillers (Screw lid) not shown
037 S/box door handle 3.00 Sans Pareil Chimney 6.50
047 Brake hangers & stretchers [3 pair] 10.05 Sans Pareil Steam pipes (pair) 2.50
056 Dean tapered buffers 11.00 Sans Pareil Motion Brackets (pair) 6.50
061 Lever reverser 4.40 Sans Pareil 45xx slidebar & X head Assembly (pair) 24.00
127 Vacuum & steam heating pipes 8.75 Sans Pareil Safety v/v & bonnet (Tall or short) 11.50
154 GWR smoke box door hinge 4.40 Sans Pareil Rocker arm bearing bkts (pair) 5.00
164 Brake weighbar shaft 5.60 Sans Pareil Pony truck 15.00
165 Oil reservoirs (2 pairs) 4.40 Sans Pareil Vacuum pump
166 Sand box lids & oil pots 4.40 Sans Pareil 45xx Backhead 25.00
169 Brake hanger brackets 5.60
173 Brake column 4.00
174 Injector water valve 4.00     Walsall Model Industries:- wheels
175 Slacker pipe valve 4.00 2 Rail Fine Scale set 91.32
176 45xx Loco driving springs (1 pair) 4.00
177 45xx whistles 4.40 Slaters Plastikard:- wheels
Pressings:- Smokebox Rings & smokebox doors 3.00 ea 2 Rail Fine Scale set 87.58
Pressings:- Firebox throatplate 5.00
Premier Components:-
Jointed coupling rods and connecting rods 32.00

Prices may vary, please check when ordering

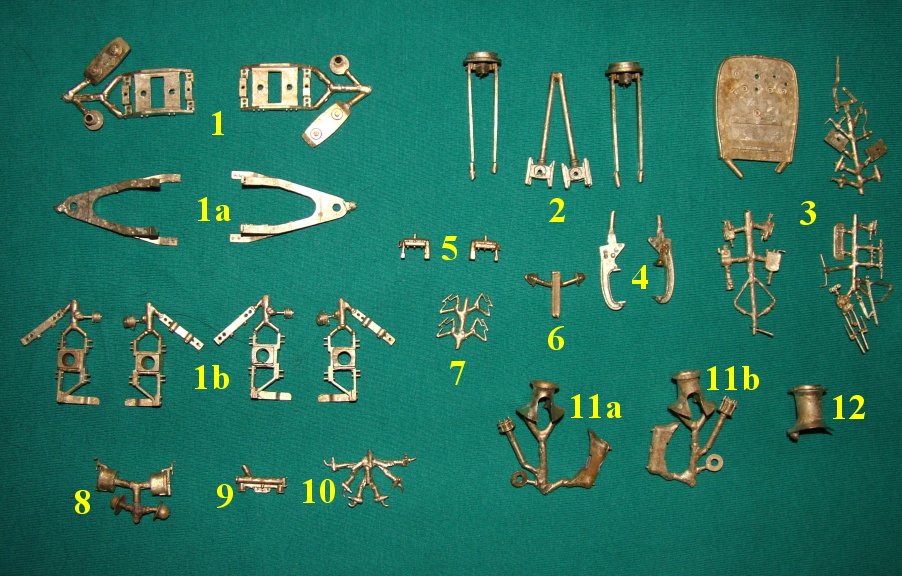

 Sans Pareil and Martello for more GWR castings
